Cath Labs
Reference posters for the lab wall

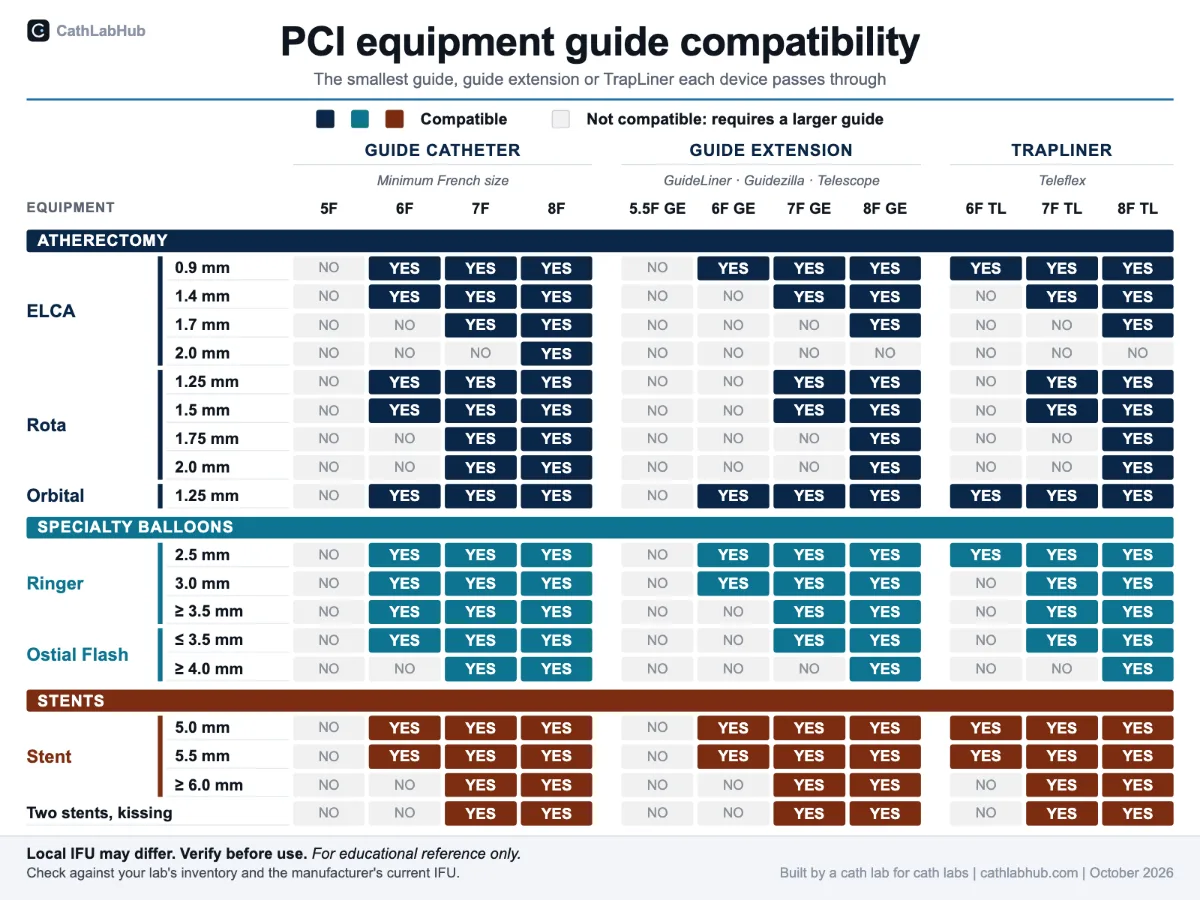

Stent sizing, guide compatibility and anticoagulation dosing, laid out to be read from across the room. Each poster comes as a PDF in four sizes: a 24 x 18 inch wall poster, 17 x 11 tabloid, 11 x 8.5 letter and a 16 x 9 slide.
Device facts and doses as one lab stocks and uses them. Check every poster against your lab's inventory, protocols and the manufacturer's current IFU before you print it.
Posters
Loading the posters
Printing
- Print at actual sizeChoose 100 percent, not "fit to page". Each PDF is one landscape page at its exact size, with no margins.
- Wall poster stockFor 24 x 18, heavyweight matte (10 mil or thicker). Lamination protects it; a matte or anti-glare finish reads better under the room lights than high gloss.
- EdgesText stays at least a quarter inch from every edge, so an office printer prints the full page at actual size. No bleed and no trimming needed.
- Before it goes upPrint one letter copy, read every number against the IFU and your shelf, and date it. Review when the formulary or an IFU changes.
